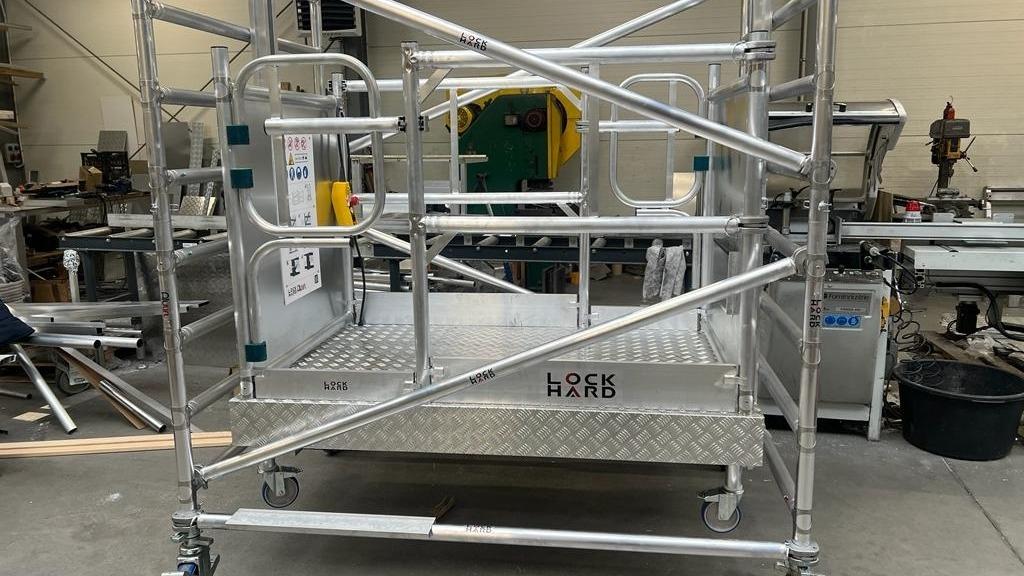

Construction Lift - The Scaffold Lift Type L Compact, with Plenty of Space

The Scaffold Lift Type L, which we refer to as the "New" version, is essentially a construction lift due to its beautifully large yet compact dimensions, especially the platform which can hold a significant number of products.

If you also want to safely elevate your products vertically, use our Scaffold Construction Lift. You will earn back your investment every time you use it! It can be assembled and disassembled by one person due to its light weight and can be placed anywhere.

Scaffold Lift Type L - Construction Lift

The Scaffold Lift Type L - Construction Lift from LockHard enables safe work at heights and always saves money! The platform dimensions of 1,100 x 1,720 mm mean that using this scaffold lift completely eliminates the need for regular climbing on and around scaffolds, thereby offering much safety and comfort.

Features of the Scaffold Lift Type L Construction Lift:

• Power Source: Standard battery-operated, but can immediately switch to 230 volts via plug if batteries deplete.
• Maximum Load Capacity: Up to 250 kg.
• Assembly: Can always be assembled and disassembled by one person from the work platform.
• Placement: Can be placed anywhere due to its low own weight.
• Ease of Operation: The Scaffold Lift Type L can be fully erected and dismantled by one person, saving time and money.
• Height Capacity: Series L can be constructed up to a platform height of 12 meters (higher construction is technically no problem but must be anchored to the facade).

Specifications of the Scaffold Lift Type L Construction Lift:

• Model: Construction Lift 1,100 x 1,720 mm
• Item Number: 100 to 1,200
• Series: L
• External Dimensions: 1,390 x 1,960 mm
• Platform Dimensions: 1,100 x 1,720 mm
• Total Weight: 128 kg to 425 kg

Compliance:

• EN280 2004 and 2009
• EN1808 + A1
• EN1004
• ISO12100
• CE2006/42/EC

For further information or if you are interested in our Scaffold Lift Type L, feel free to email us at info@safescaffoldliftspecialist.com, and we will be happy to assist you in working safely at height.
